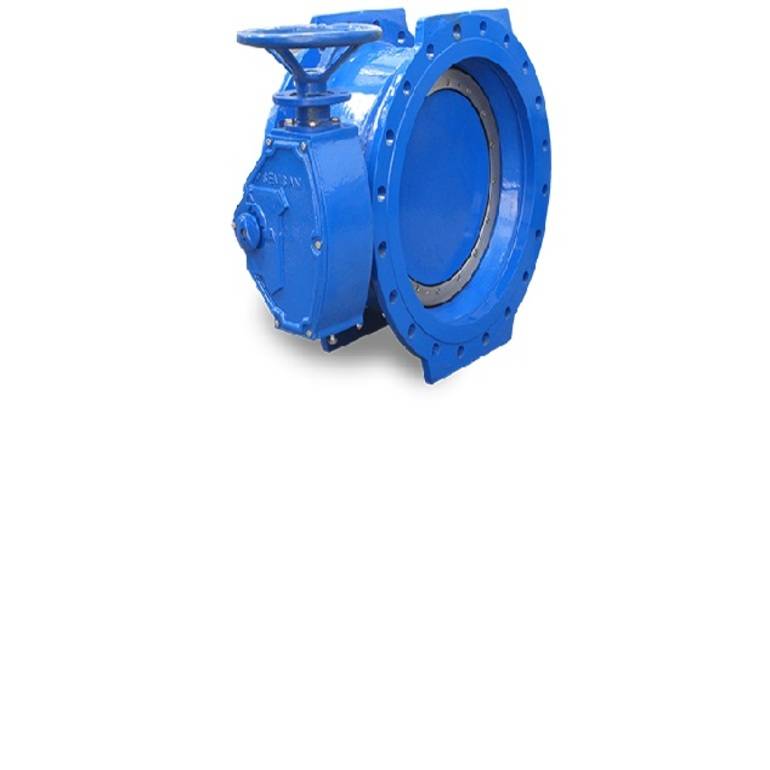

Butterfly valve
Butterfly valve, hand wheel, electrical and /or pneumatic actuators, on-off or modulating operation;double eccentric
ADVANTAGE :
Low Operation Torque For Bigger Diameters With Double Eccentric
Low Maintained Cost
Leakage Tests, EN 12266 Class A (Completely Tightness)
DESIGN:
Double Flange; Double Eccentric
Flanges DIN EN 1092 PN 10 – PN40
Valve Shaft Double Offset
Face To Face EN 558-1 Series 14 (DIN 3202,F4) (Short Pattern Is Optional)
Mechanical Position Indicator And Limit Stops On Gear Box
Max Operation Temperature 50 °C (120 °C Optional)
Ebonite Coating For Seawater
