Multistage ring - section high - pressure pump

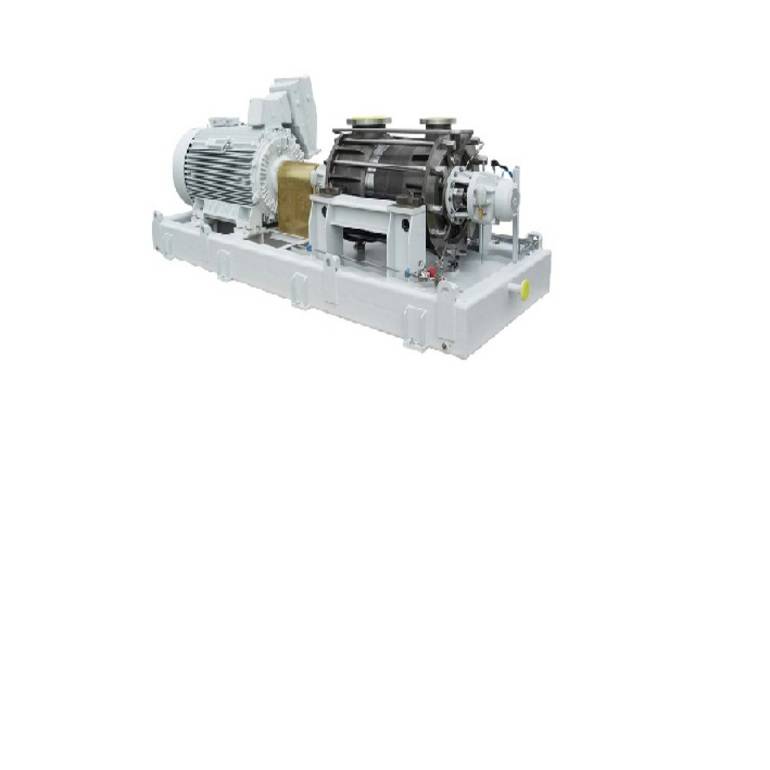

1- Pump type HP
Horizontal, multistage ring - section high-pressure pump, between bearings design, as in-line version. The process pump has excellent hydraulic characteristics, a perfectly optimized performance field, and a modern structural design.
Q (m³/h) 1800
H (m) 2800
P (bar) 300
T (°C) +250

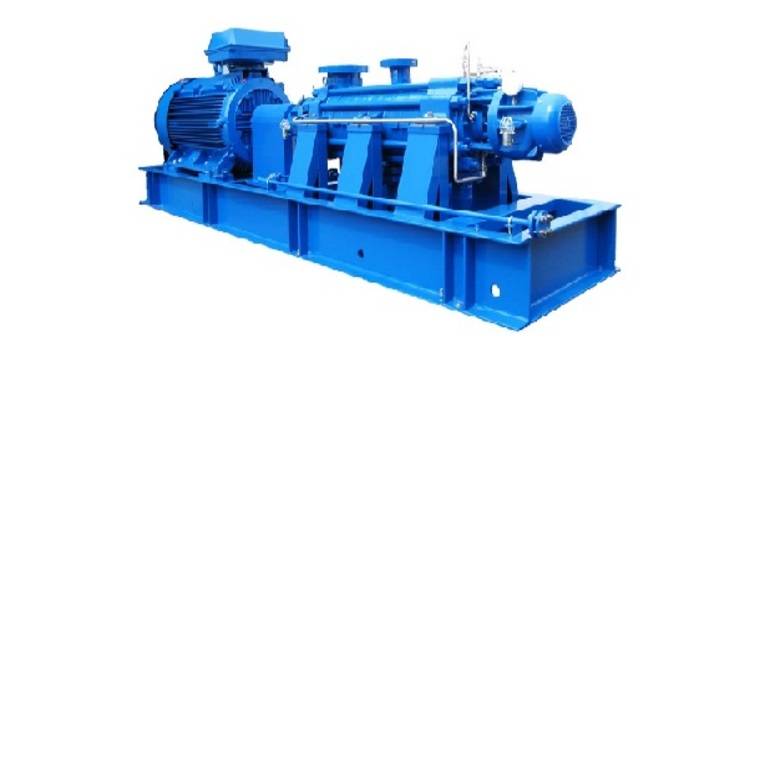

2- Pump type GP
Horizontal, multistage ring-section high-pressure pump, between bearings design, as back-to-back version. The process pump has excellent hydraulic characteristics, a perfectly optimized performance field, and a modern structural design.
Q (m³/h) 600
H (m) 2500
P (bar) 250
T (°C) +250

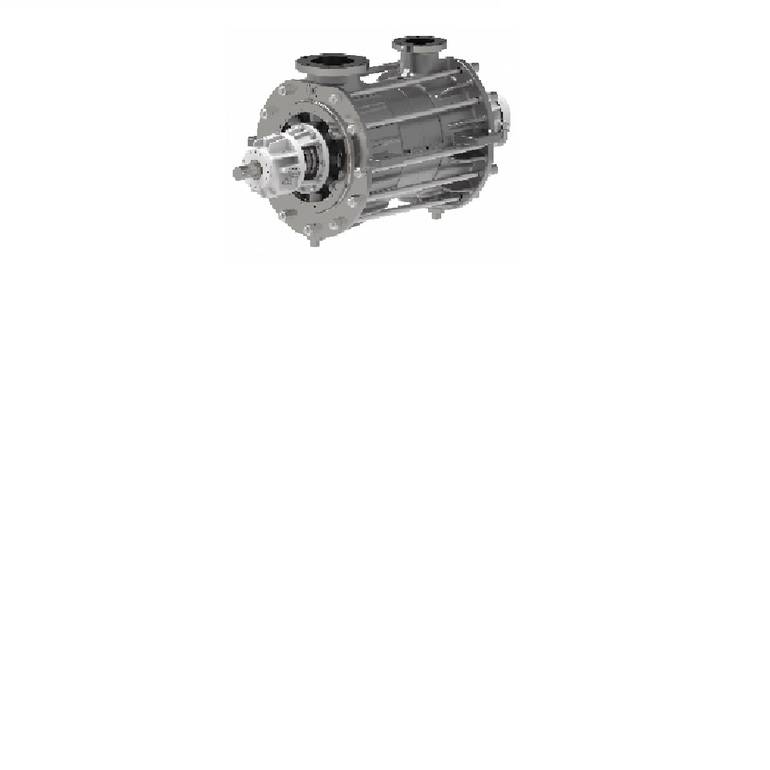

3- Pump type GMHD
Horizontal, multistage ring-section high-pressure pump. The process pump is particularly suitable for big volumetric flow rates and has a modular design for the best possible adaptation to customers’ requirements and low operating costs.
Q (m³/h) 1100
H (m) 320
P (bar) 63
T (°C) +180
