Horizontal, Single - stage and 2-stage Pumps, Between Bearings BB2

Horizontal, Single - stage and 2-stage Pumps, Between Bearings BB2

Horizontal single and 2 stage double suction type BB2

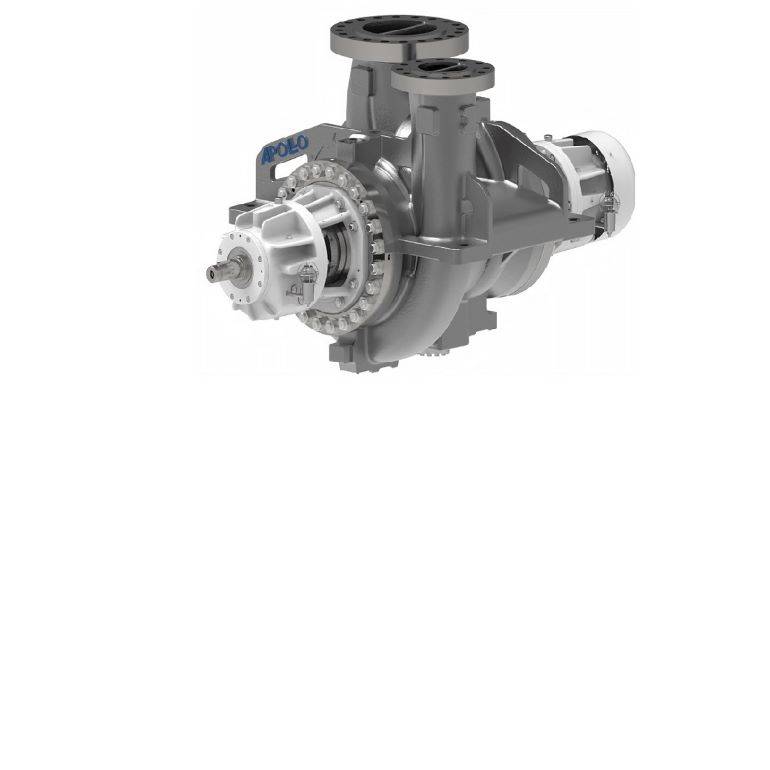

1- Pump type  ZPR / ZPRA

Single-stage, double suction volute casing pump according to API 610 or ISO 5199. The ZPR process pump is especially suitable for high pressures and high temperatures and can be designed with a variable casing design according to customer requirements.

Q (m³/h) 1,500 / 4,000
H (m) 450 / 300
P (bar) 160 / 55
T (°C) +450 / +450

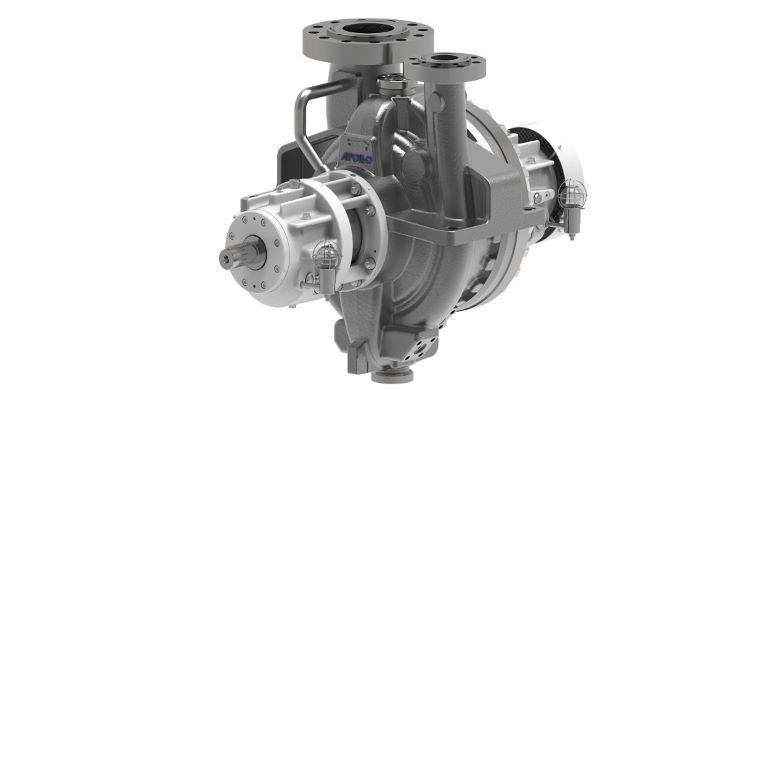

2- Pump type KGR

Heavy-duty, radially split, double-stage process pump, between bearing version according to API 610 or ISO 5199. The double-flow suction impeller ensures for best NPSH values and the optimum rotor dynamics for safe operation. The suction impeller type KGR has a single-flow impeller.

Q (m³/h) 1 600

H (m) 600

P (bar) 80

T (°C) +400

3- Pump type KGRD

Heavy-duty, radially split, double-stage process pump, between bearing version according to API 610 or ISO 5199. The double-flow suction impeller ensures for best NPSH values and the optimum rotor dynamics for safe operation.

Q (m³/h) 1 600

H (m) 600

P (bar) 80

T (°C) +450
