Horizontal / vertical, axial split casing - Delium
Horizontal / vertical, axial split casing pump with different range of material for all application for water – HVAC
Pump type: DeLium

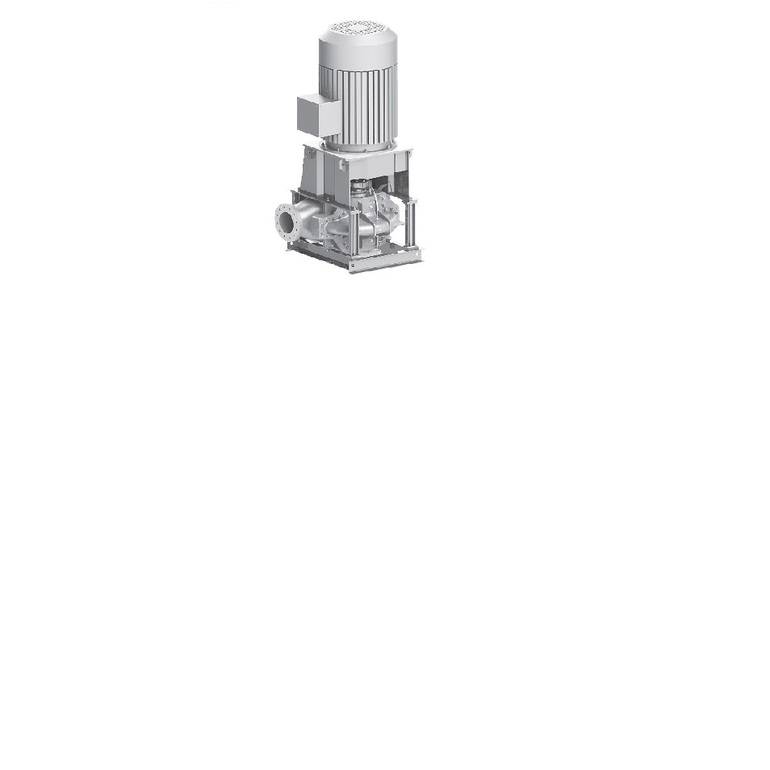

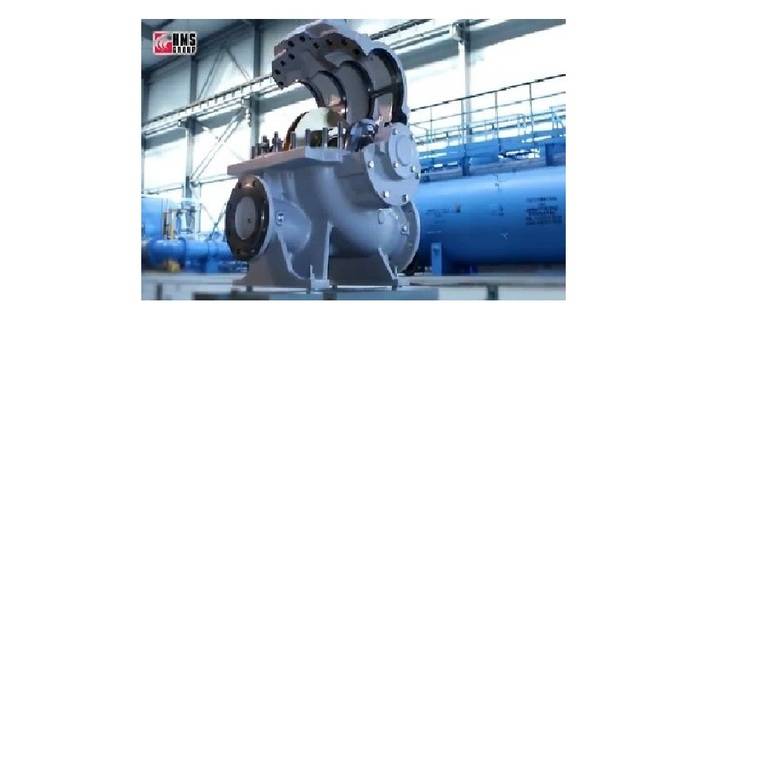

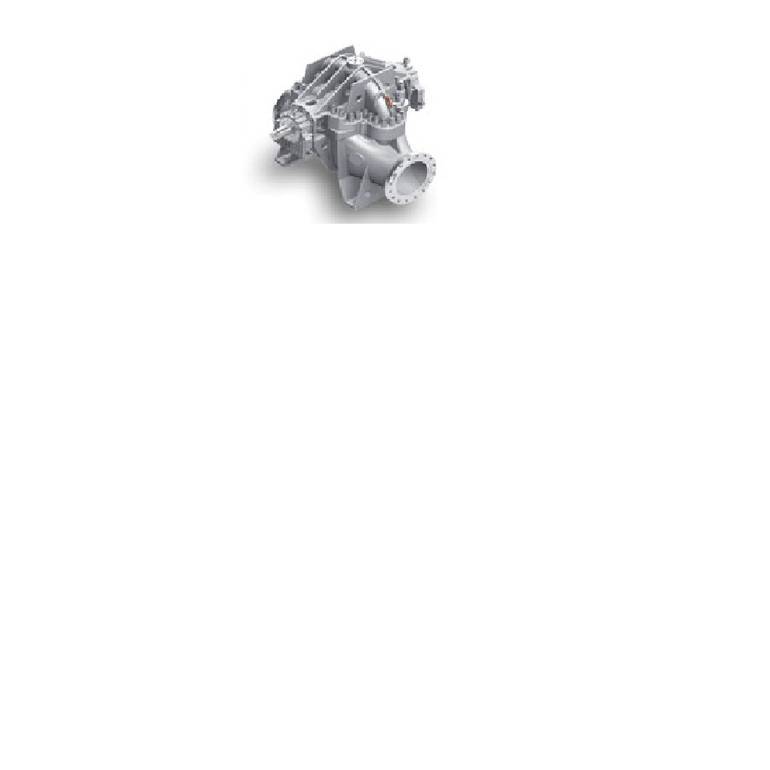

HMS DeLium is a new generation of the double suction pumps with axially split volute casing
A wide model range and application requirements within up to 10,000 m3/h capacity up to 200 m pressure head.
Climatic conditions admit application of the pumps within -60°С to +60°С temperature range.
APPLICATION
Water supply, treatment and heating systems, oil & gas, nuclear & thermal power, chemical industry, pulp & paper, general industrial processes, agriculture & irrigation, firefighting, desalination, shipbuilding.
TECHNICAL DATA
Capacity: up to 10,000 m3/h
Head: up to 200 m
Efficiency: up to 91.5%
Maximum operation pressure: up to 25 kgf/cm2 (25 bar)
Connecting flanges: DN125...DN800
