Overhung end suction pumps OH1; OH2; OH3

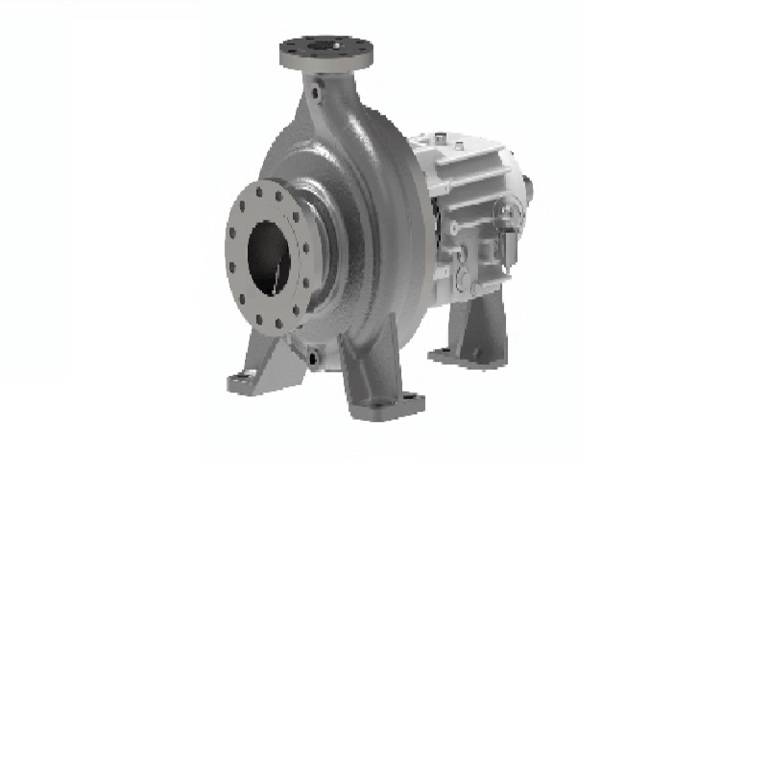

1- Installation type: OH1
Pump type - KRP
Foot-mounted, single-stage overhung pumps in radial-split design. The pump meets all requirements of API 610 and ISO 5199. The back-pull-out version in connection with demountable coupling (volute casing and motor remain in initial position) allows simple maintenance. Exchangeable wear and guide rings enable easy maintenance and cost reduction.
Q (m³/h) 2800
H (m) 250
P (bar) 25 / 35
T (°C) +150

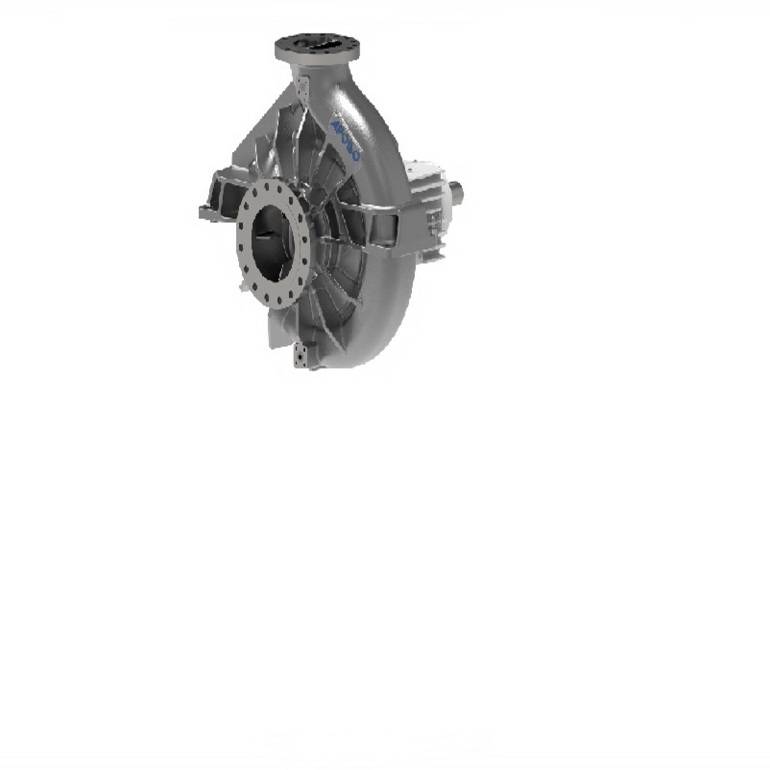

2- Installation type OH2
Pump type KRH / KRHA
The single-stage, horizontal, heavy version is designed acc. to the requirements of API 610 and ISO 5199. The robust design of the pumps, as well as the reliable hydraulic version, enable to fulfillment of all requirements of the application in many fields.
Q (m³/h) 1000 / 5000
H (m) 320 / 220
P (bar) 55 - 90 / 55
T (°C) +450 /+450
KRHL / KRPO / KGHL
Single-stage, one-flow, normal-priming ring-section pump meets all requirements of API 610 and ISO 5199.
KGHL is a two-stage version. OH2 version for low capacity and high head.
Q (m³/h) 45 / 25 / 45
H (m) 270 / 210 / 350
P (bar) 50 / 50 / 50
T (°C) +450 / +450 / +450

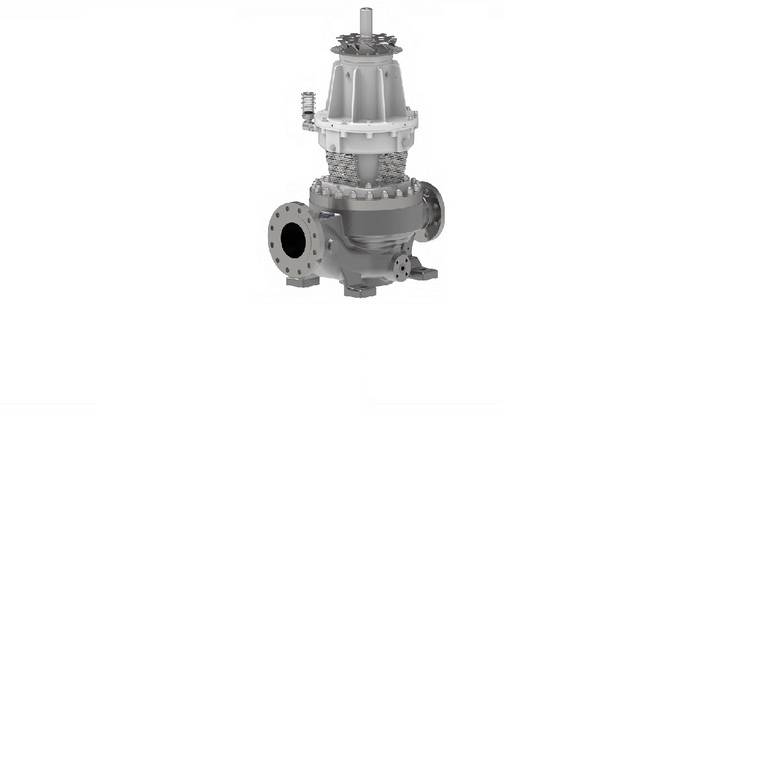

3- Installation type OH3
Pump type KRI / KRIL
Vertical, single-stage, radially split process pump as inline version according to API 610 and ISO 5199. KRIL as a version for low capacity. The vertical inline pump is characterized by space-saving installation options.
Q (m³/h) 800 / 45
H (m) 270 / 270
P (bar) 55 / 50
T (°C) +250 / +250
