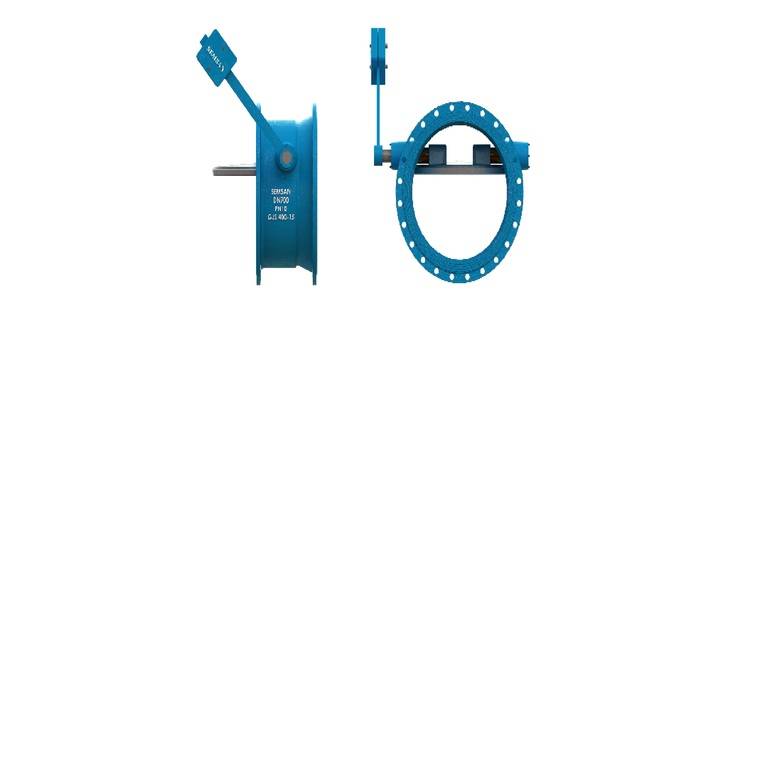

Tilting check valve

Tilting check valve – counter weight and hydraulic damper up to DN 2000mm – more on request

DESIGN:

Double Flanged

Valve Disk Double Offset

Flanges DIN EN1092 - PN 10/16 Norms

Face To Face EN558 -1 Series 14, DIN3202 F4

Body And Disk Sealing Surface Is Corrosion – Resistant Stainless Steel Welded AISI 316

Adjustable Counterweight Lever

Maximum Operating Temperature 50 °C

MATERIAL:

Body And Disk Ductile Iron GGG 40/50

Valve Shaft Stainless Steel AISI 420

Shaft Bearing Is Bronze

Epoxy Coating For Drinking Water
